Automatic Transfer Switch (ATS) and Switchgear:

Exchanging and Distribution

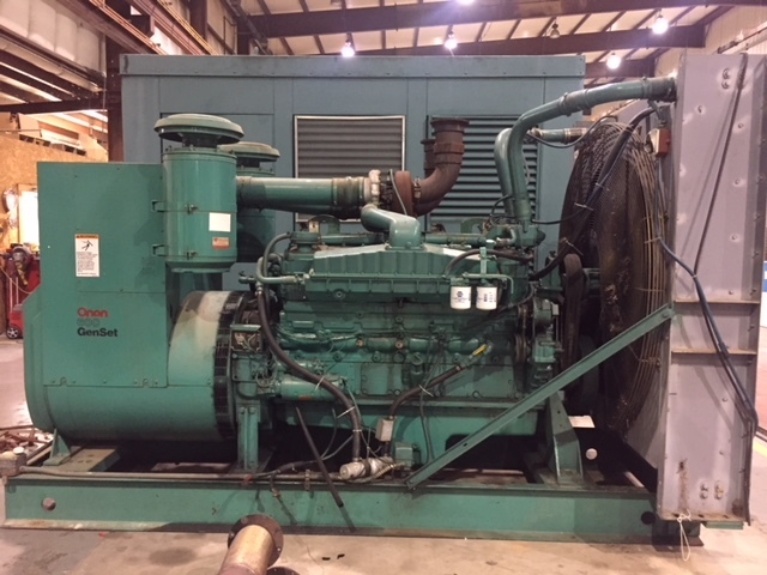

Crisis, prime, or continuous power provided by diesel generators are regular inside industrial settings. When power production, it must disperse all through the office.

A few enterprises just require generator power for crisis lighting and other crisis frameworks. Offices that have basic or life emotionally supportive networks use a further developed appropriation framework.

Littler and less propelled power age and dispersion frameworks can contain:

  • Generator
  • Programmed Transfer Switch
  • Switchgear (contingent upon measure)
  • Circuit Breaker(s)

Bigger further developed power age and conveyance frameworks can contain:

  • Generator(s)
  • Programmed Transfer Switch(s)
  • Programmed and Manual Switchgear (for low, medium or high voltage)
  • Uniterruptible Power Supply – from little ones to Battery Banks and Rotary UPS Systems
  • Electrical parts that are remote
  • Remote caution and checking capacity

This article gives definitions to the Automatic Transfer Switch (ATS) and sorts of switch equip.

Programmed Transfer Switch (ATS)

At the point when utility power outage, the program exchange switch (ATS) orders generator startup. At the point when the generator is prepare, it changes to crisis power.

Single Generator Configurations

Remember that circuit breakers stay shut until the point when they trip because of an over-burden or short out condition.

At the point when power comes up short:

  1. The programmed exchange switch summons the generator to begin.
  2. At the point when generator preparation to supply power, the ATS changes crisis power to the heap.
  3. When utility power is reestablished ATS changes to utility power and orders generator shutdown.

Various Generator Configurations

A few destinations have structures situation sufficiently far to avert paralleling tasks amid loss of power. These destinations regularly utilize the utilization of various generators.

The establishment design of the generators does not permit parallel task regardless of whether the generator control panel has paralleling programming introduced. The succession of programmed exchange switch occasions is essentially the same as the single generator setup. At the point when utility power outage to the website, every individual building’s ATS plays out its obligations and crisis power is brought online until the point that power is reestablishment. With this style of establishment, it is conceivable that one expanding on the site loses utility power and the remaining has power. Just the generator for the working with fizzled utility power would start.

ASCO

ASCO

As an ASCO Reseller, Mid-America Engine offers a wide assortment of ATS items. To get more specialization subtle elements on exchange switch innovation, NEC Requirements, keeping up exchange switches and more ASCO has a broad library of specialization whitepapers worth looking at.

Electrical Switchgear

The primary switchgear utilized was in power station applications. This comprised of blade switches mounted on panels built of marble or asbestos. Be that as it may, as present and voltage needs raise, the open blade switch idea turns into a wellbeing danger. The blade changes progress to encase circuit breakers to avoid stun.

Private crisis generator applications today utilize the electrical switch panel as the switch equip. In this straightforward application, the programmed exchange change supplies power to the electrical switch in the panel in the home when power is lost. This is a case of the most straightforward switchgear application.

Innovative-Energy-solutions

The following level of switchgear is utilized for enterprises that don’t have mission basic power necessities. Regularly power is provided to independently assigned circuit breakers. A significant number of these style circuit breakers are furnished with a LED to demonstrate power. Cases of sorts of frameworks powered are:

  • Firstly, Crisis Lighting – Lighting for exit walkways and leave signs all through building
  • Secondly, Unsafe Ventilation – Exhaust ventilation for rooms that contain harmful synthetic stockpiling
  • Thirdly, Interchanges – Phone framework empowered or a few telephones with the framework
  • Fourthly, Alert and Monitoring – Fire observing and electronic entryway frameworks

Doctor’s facilities, aviation offices, server farms and different enterprises that require continuous power when utility power interference with utilize further development switchgear frameworks. These frameworks are handcraft by power enginners for the office. Expansive establishments with basic power prerequisites can have a control room.

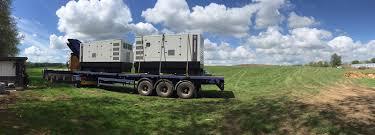

Power Generator
Power Generator

The control room is the middle center point for electrical power dispersion. Numerous crisis generators can be parallel and set on-line in the occasion of a darker out or finish loss of power. Power appropriation panels can be high voltage and have sub-panels outfit with venture down transformers association for low voltage task.

A case of a run of the mill power misfortune is recorded underneath:

  1. All utility power is lost to numerous generator programs exchange switches. Cautions are sound for power misfortune.
  2. ATS charges the generators to be begun.
  3. At the point when generators are up to speed and evaluation power, ATS changes to crisis generator power.
  4. Switchgear and generator programming take into consideration programmed generator paralleling.
  5. Switchgear circulates power to assigned circuits.
  6. In-house or remote administrator empowers circuits that are key and de-stimulates superfluous burdens (relies upon current activities of office).

At the point when power is reestablished ATS changes to utility power and generators are shutdown.

Every office offers diverse needs in crisis standby power needs. Switchgear necessities get significantly more intricate in light of the sort of framework requirement.

Frequently Asked Questions:

1.How does an ATS switch work?

An automatic transfer switch or ATS switch is useful in areas where there is frequent power failure. It detects the power failure and connects standby generator to your home. Later on, it detects when the power is restored and switches your home back to utility power.

2. What are the two types of automatic transfer switches?

The two types of automatic transfer switches are circuit breaker and contactor.

3. What is the difference between ATS and STS?

Automatic transfer switch (ATS) is depended on moving parts and makes a comparatively slower transfer than Static transfer switch while A Static transfer switch (STS) utilizes a static electronic components (SCR) , which permits transfer in less than four milliseconds (1/4 of an electric cycle).
